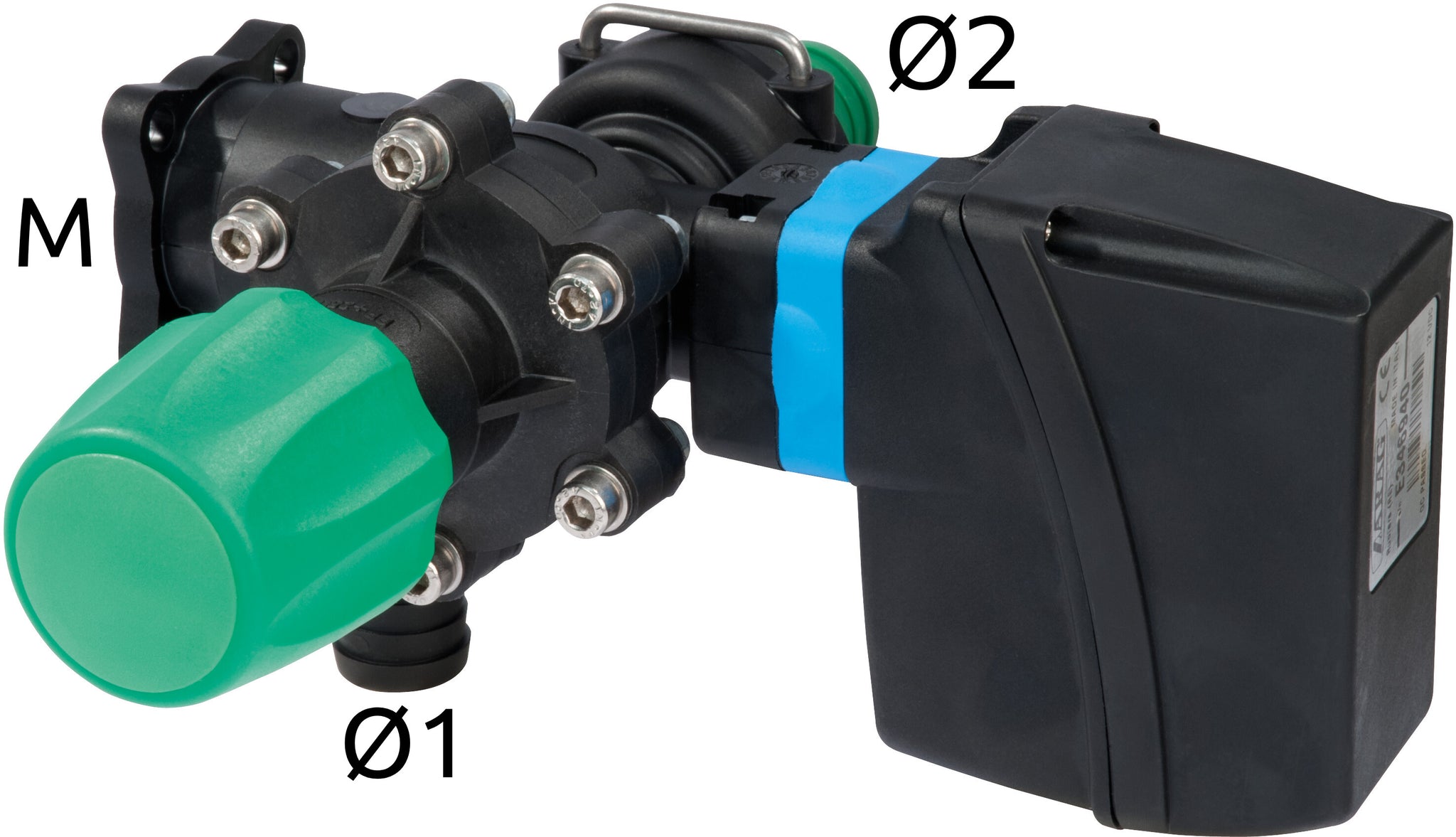

NEW - Electric main control valve with adjustable pressure relief valve

NEW - Electric main control valve with adjustable pressure relief valve
NEW - Electric main control valve with adjustable pressure relief valve
NEW - Electric main control valve with adjustable pressure relief valve
NEW - Electric main control valve with adjustable pressure relief valve
NEW - Electric main control valve with adjustable pressure relief valve
NEW - Electric main control valve with adjustable pressure relief valve
  • Load image into Gallery viewer, NEW - Electric main control valve with adjustable pressure relief valve
  • Load image into Gallery viewer, NEW - Electric main control valve with adjustable pressure relief valve
  • Load image into Gallery viewer, NEW - Electric main control valve with adjustable pressure relief valve
  • Load image into Gallery viewer, NEW - Electric main control valve with adjustable pressure relief valve
  • Load image into Gallery viewer, NEW - Electric main control valve with adjustable pressure relief valve
  • Load image into Gallery viewer, NEW - Electric main control valve with adjustable pressure relief valve
$491.18
$491.18
Sold out
SKU: E000031278
GENERAL FEATURES
  • fiberglass-reinforced Nylon body
  • Internal parts in Delrin® and AISI 303 stainless steel
  • Gaskets made of Viton®
  • Internal resettable fuse (disconnecting power for 20 seconds)

Code8710502

IN

19 mm
25 mm
30 mm
32 mm
3/4"
1"
1 1/4"

Ø 3

25 mm
30 mm
32 mm
35 mm
1 1/4"

On / Off @ 90° 0,6 sec.

Flow rate150 l/min

MAX Pressure20 bar

Absorption @ 12 V0.5 A

Power supply voltage12 Vdc
